JED Engineering & Land Surveying provided survey field and CADD work, in accordance with New York City Department of Design and Construction (NYCDDC) specifications for the preparation of Survey Documents for Bay Street Area Safety Improvements in Staten Island. The following tasks were performed:

• Control Survey: Vertical Controls were set in the Borough of the Bronx datum and later converted to NAVD 88. Horizontal controls were established in NAD 83.
• Sewer Investigation: Obtain inverts, pipe sixes, flow direction, and material.
• Topographic Survey:
• Highway and Sewer Profiles
• Utility Survey
• Right of Way Survey: Boundary lines researched and plotted.

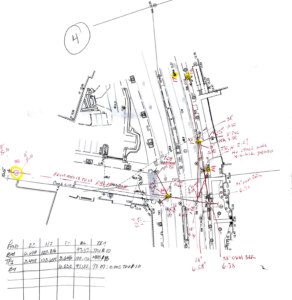

• CADD: Key Plans and Control Drawings

Contract Cost: $23K
Status: Completed 2022
Point of contact: William Spieza, P.E.
Phone: 718-447-7311
Email: wspiezia@rogerssurveying.net
